AUDIO & VIDEO MODULES 1000-3000 MHz transmitters and receivers

Modulators, demodulators and accessories targeting the OEM and assembling segment suited for: security surveillance, remote measures, CCTV, CATV, TV signal distribution and similar applications. MTV2500 and RV2000A are CE compliant in the 2300-2700 MHz band and their major applications are mobile radio link or analog mobile video camera. The other models are intended for Military applications, State security or to be exported abroad the EU.




MTV2500 , MTV2500/LB , MTV2500/03
Synthesized FM Video + Audio Modulators-Transmitters


  • 1000-1350MHz/1350-1700MHz 1W MTV2500/LB
  • 2300-2700MHz 1W MTV2500 (CE compliant)
  • Up to 3100MHz MTV2500 Special version
  • 1000-1700MHz/2300-2700MHz 0,3W MTV2500/03
  • 1-1,4GHz/1,3-1,7GHz/2,3-2,7GHz 0,5W MTV2500/05
  • 330-390MHz 0,6W or 2W Special version
  • Extenal frequency setting
  • FM video carrier modulation: +/- 4MHz
  • Audio sub-carrier: 7,5MHz
  • Power supply: 12Vcc
  • Dimensions MTV2500: 123x78x46mm
  • Dimensions MTV2500/03 e MTV2500/05: 78x78x24mm
  • MTV2500 Technical data
  • MTV2500/LB Technical data
  • MTV2500/03 Technical data
  • The technical data are in italian language

    English version available soon




MT MICRO-V, MT MICRO-AV, MICRO 100
Thermo-compensated Oscillators-Transmitters, FM Video + Audio modulated


  • 1080 - 1300 MHz in 10 - 50 MHz sub-bands
  • Output power: 20 - 100 mW
  • 20mW video transmitter MT MICRO-V
  • 20mW audio+video transmitter MT MICRO-AV
  • 100mW audio+video transmitter MICRO 100
  • Power supply: 5,2V to 12V versions

The technical data are in italian language, english version available soon

MT MICRO Technical data




MICRO 1000
1W Video + Audio Modulator

Frequency and Video-Audio specifications like MT MICRO-AV e MICRO 100

Power supply 12V 350mA , R.F. out 1W , dim. 60x42x17mm without cable





MICRO 500-V
500mW Video Modulator (no audio subcarrier)

Frequency and Video specifications like MT MICRO-V

Power supply 12V 200mA , R.F. out 500mW , dim. 40x40x11mm without cable





MICRO 500
500mW Video + Audio Modulator

Frequency and Video-Audio specifications like MT MICRO-AV e MICRO 100

Power supply 12V 200mA , R.F. out 500mW , dim. 40x30x16mm without cable





MTX2100
Synthesized FM Video + Audio Modulator-Transmitter


  • 1000-1700 MHz in 100-200 MHz sub-bands
  • 10 channels external frequency setting
  • Output power: 100 mW
  • FM video carrier modulation: +/- 4 MHz
  • Audio sub-carrier: 7,5 MHz
  • Power supply: 12 V
  • Dimensions: 52 x 64 x 23 mm

The technical data are in italian language, english version available soon

MTX2100 Technical data




RV2000A
Synthesized FM Video + Audio Demodulator-Receiver


  • 950-2200 MHz (1,9 - 3 GHz opt. 3G)
  • Video out: 1Vpp - 75 Ohm
  • Audio out: 0 dBm
  • Power supply: 12 V
  • Dimensions: 116 x 55x 150 mm
  • Available only board mod. RV2000AS and miniature version mod. RV MINI

The technical data are in italian language, english version available soon

Technical data
RV 2000A
RV 2000AS
RV MINI




2300-3200MHz ANTENNA AMPLIFIER mod. PRE 3G


  • 2300-2900MHz or special version to 3200MHz
  • NF: 3dB, Gain:18-25dB
  • N or SMA Input connector
  • BNC Output connector
  • Power supply: 12V 50mA from RV2000A/3G




900-2200MHz ANTENNA AMPLIFIER mod. PRE 2G


  • 900-2200MHz Amplifier for RV2000A
  • NF: 3dB, Gain: 18dB
  • Type F or BNC connectors
  • Power supply:12V 40mA from RV2000A

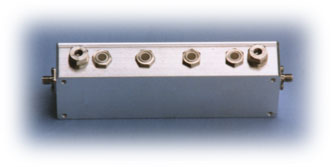

1000-2700MHz BANDPASS FILTER


  • Professional grade 3 models band pass filters
  • BW = 30-40MHz on 1000-2200MHz band
  • BW = 20-30MHz on 1300-2700MHz band
  • BW = 200MHz on 2200-2700MHz band
  • Connectors: SMA female
  • Insertion loss: approx. 0,5dB
  • Dimensions(max): 180 x 70 x 35 mm




LOG-PERIODIC ANTENNAS mod. LOG-12EL and LOG-21EL


  • Log-periodic antenna 12 elements 1100-2000MHz
  • Gain: 7,5 dB max.
  • connector: 50 Ohm BNC female
  • Dimensions: 430 x 150 x 45 mm



  • Log-periodic antenna 21 elements 1000-2200MHz
  • Gain: 8 - 10 dB max.
  • connector: 50 Ohm BNC female
  • Dimensions: 780 x 150 x 45 mm





PATCH ANTENNAS mod. PLANAR 16CM and PLANAR


  • 16cm Planar antenna
  • Gain: 4 - 6 dB
  • Frequency range:
    1050-1180MHz  1150-1350MHz
    1350-1550MHz  1500-1700MHz
  • connector: SMA female
  • Dimensions: 160 x 160 x 30 mm
  • Planar antenna
  • Gain: 7 - 8 dB
  • Frequency range:
    2300-2800MHz
    2300-2500MHz right hand circ. pol.
  • connector: SMA female
  • Dimensions: 80 x 100 x 25 mm




DIGITAL VIDEO ENCRYPTION SYSTEM mod. SAFELOCK 1 (ENCODER+DECODER)


  • Cut and rotate encoding
  • 128bit encryption key  / PAL-NTSC
  • Composite video input/output only
  • On screen indicator of encryption
  • PCB soldering connections
  • Power supply: 7-15V 65mA
  • Dimensions: 61 x 41 x 6 mm




GHOST SYSTEM
DIGITAL AUDIO TRANSMISSION SYSTEM

GHOST manual




GSM QUAD-BAND AUDIO TRANSMITTER PIXEL , 1 or 2 MIC
Tiny audio transmitter based on a quadri-band GSM module.




Manual




GSM QUAD-BAND AUDIO TRANSMITTER NANO, 1 or 2 MIC
Tiny audio transmitter based on a quadri-band GSM module.

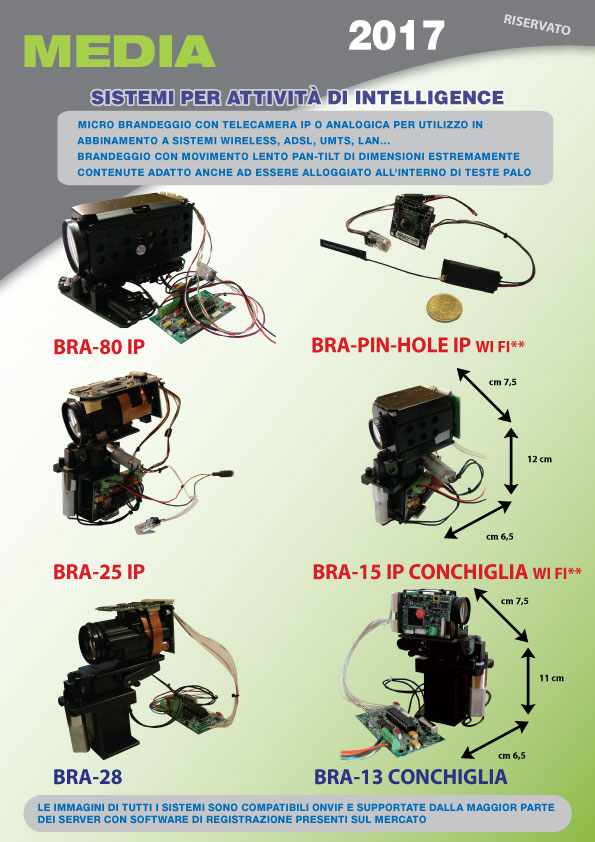

IP, RS 232/485 and DTMF CAMERA CONTROL SYSTEM , PAN-TILT, ZOOM, FOCUS, CAMERA SETTINGS
10x TO 130x SD and FULL HD OPTICAL ZOOM CCD VIDEO CAMERA

PAN-TILT AND ZOOM CONTROLS ALSO COMPATIBLE WITH PROTOCOL PELCO-D   PELCO-P

www.mediasrls.it

To enlarge use the browser zoom or print the image






Additional products we produce include: 330-390 MHz FM video+audio transmitters/modulator, Signal Jammers, Remote control module boards,Audio systems over dedicated lines (ALIDOP - ALIMIC), Various type of antennas, Down converters, 4.5-5GHz 70MHz IF microwave radio links are available as well
